The Fundamental Axiom of Architecture: Risk-Driven Design

Architecture as uncertainty reduction

ISO 31000, the international standard for risk management, defines risk as "the effect of uncertainty on objectives."¹ This definition is deceptively powerful when applied to architecture. Strip away the frameworks, the modelling notations, and the governance ceremonies, and what remains is a core purpose: architecture exists to reduce uncertainty about whether a set of objectives can be achieved.

This is true across every architecture discipline. A solution architecture reduces business risk relating to a solution's ability to meet particular requirements — business, functional, and non-functional — that collectively deliver an organisational outcome. It reduces uncertainty regarding business interfaces, deployment, and the support structures needed to sustain the solution in operation.

A technology strategy and accompanying roadmap reduces uncertainty relating to required technology investment over a planning horizon. It helps an organisation avoid the risk that its technology spend is ill-directed — solving yesterday's problems while tomorrow's capabilities go unfunded.

A segment architecture for a new capability — integrated customer service, for example — reduces executive uncertainty about the scale and nature of systems and organisational change required before committing to a transformation program. The architecture improves the organisation's chances of success before it ventures into a change program, thereby reducing the risk of expensive failure.

If this axiom holds — that architecture fundamentally manages and reduces risk through the minimisation of uncertainty — then an important question follows: should the principles of risk management also guide how architectures are created?

The case for risk-driven design

George Fairbanks formalised this thinking in Just Enough Software Architecture, arguing that architecture effort should be calibrated to risk.² His risk-driven model is deliberately simple: identify and prioritise risks, select and apply techniques that address them, then evaluate whether those risks have been sufficiently reduced. The insight is that there is no justification for meticulous design when risks are small — and no excuse for sloppy design when risks threaten success.

This is a significant departure from the way most organisations approach architecture. The default in many enterprises is to treat architecture as a compliance artefact — a document produced to satisfy a governance checkpoint, with scope and depth determined by a template rather than by the risks the architecture needs to address. The result is a pattern that wastes effort in some areas while leaving genuine risks unexamined in others.

A risk-driven approach inverts this. It asks: what are the things most likely to go wrong, and what are the consequences if they do? Architecture effort is then concentrated on the areas of highest risk, while lower-risk components receive proportionately lighter treatment.

Risk appetite and architecture depth

Every organisation has its own risk appetite — the level of uncertainty it is prepared to carry through different types of engagements. A regulated financial institution commissioning a core banking platform has a very different risk tolerance from a startup testing a new consumer product. The architecture response should reflect this difference.

A risk assessment matrix, plotting likelihood against consequence severity, provides a practical tool for making this calibration visible. Where likelihood is low and impact is negligible, only light-touch analysis and design is warranted. Where a component of the architecture carries a major impact and is likely to be realised, considerably more rigorous analysis is required.

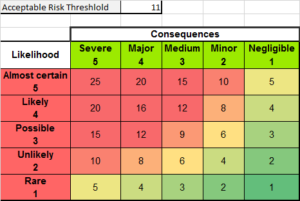

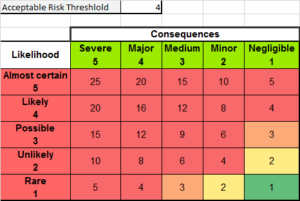

The concept of an "acceptable risk threshold" makes the organisation's risk appetite explicit and applies it directly to architecture scope. This threshold determines which components receive deep analysis and which receive only enough to confirm that risk is within tolerance. Figures 1 and 2 illustrate how different thresholds produce dramatically different architecture workloads — not because the solution is different, but because the organisation's appetite for uncertainty is different.

This approach requires a mature architecture practice. Standardised views and viewpoints, consistent modelling notation, and structured analysis methods need to be in place before risk thresholds can be meaningfully applied. Architecture governance bodies then have a substantive basis for assessing completeness — not whether a document has been ticked off, but whether the risks that matter have been adequately addressed.

Contemporary validation

The principle has gained significant traction since its early articulation. The Software Engineering Institute at Carnegie Mellon University has continued to advance risk-aware architecture practices, most recently through Agile Architecture Risk Management (AARM) — a methodology that integrates continuous risk evaluation into agile delivery cycles.³ AARM treats architecture risk as "the software system's inherent inability to promote stakeholder goals" and recommends practices such as pattern/quality-attribute matrices and dedicated sprint-level architecture risk reviews.

What makes AARM notable is that it operationalises risk-driven architecture within the delivery rhythms that most modern teams already use. Rather than requiring a separate, heavyweight architecture phase, it embeds risk evaluation into sprint planning, backlog refinement, and code refactoring — precisely the touchpoints where architecture decisions are actually being made, whether or not they are recognised as such.

The current ISO 31000:2018 standard reinforces the underlying principle by insisting that risk management must be "integrated into all organisational processes and decision-making, not administered as a separate function."¹ Applied to architecture, this means risk assessment should not be a one-off exercise at the start of a program. It should be a continuous discipline woven into the way architecture evolves throughout delivery.

The counter-argument: is risk assessment itself a risk?

The most substantive objection to risk-driven architecture is pragmatic rather than theoretical. If calibrating architecture effort to risk requires structured risk assessment, consistent viewpoints, and mature governance, then the approach itself carries overhead — and that overhead may, in some contexts, exceed the value it delivers.

Proponents of strict agile minimalism argue that the best way to manage architectural risk is not to assess it upfront but to defer decisions until the last responsible moment, build the simplest thing that works, and refactor when reality demands it. The YAGNI principle — "You Aren't Gonna Need It" — holds that speculative architecture effort is wasted effort, because the assumptions underlying the risk assessment are likely to be wrong.⁴

This argument has force in certain contexts: small teams, single-product companies, and greenfield environments where the cost of rework is low and the feedback cycle is fast. In these settings, over-engineering is a genuine and common failure mode, and a bias toward simplicity serves teams well.

The limitation is one of scale and consequence. In complex enterprise environments — spanning legacy systems, multiple vendors, regulatory constraints, and business units with competing priorities — the cost of getting architecture wrong is not a refactoring exercise. It is a multi-year remediation program, a failed integration, or a regulatory breach. The feedback cycles are measured in quarters, not sprints. By the time reality demands a change, the cost of that change may have grown by orders of magnitude.

Fairbanks himself positions risk-driven architecture as the resolution to this tension — not big design upfront, and not reckless informality, but a principled middle ground where the level of effort is justified by the level of risk.² The risk assessment need not be heavyweight. A team that spends thirty minutes identifying and ranking the top five risks facing their architecture, and then focuses their design effort on those five areas, is practising risk-driven design. The overhead is minimal. The alternative — spreading effort uniformly across all components regardless of risk, or applying no structured thinking at all — is more expensive in both directions.

Making it practical

For organisations seeking to adopt a risk-driven approach, the starting point is not a new framework or methodology. It is a shift in the question that architecture governance asks. Instead of "has the architecture been completed?" the question becomes "have the risks that matter been adequately addressed?"

Three practices make this shift concrete:

Risk-prioritised scoping

Before beginning architecture work, identify the components and decisions that carry the highest risk — to delivery, to integration, to the enterprise, or to the business outcomes the investment is intended to achieve. Concentrate architecture effort on those areas. Be explicit about which areas are receiving lighter treatment and why.

Threshold-based governance

Define the organisation's risk appetite in terms that architecture governance can apply. A risk threshold — whether expressed as a numerical score or a qualitative assessment — gives governance boards a substantive criterion for evaluating architecture completeness. It also gives architecture practitioners a defensible basis for scoping their work.

Continuous risk review

Architecture risk does not remain static. Risks that were negligible at the outset may become critical as delivery progresses, stakeholder requirements shift, or technology constraints emerge. Risk assessment should be revisited at meaningful intervals — not as a bureaucratic exercise, but as a genuine re-evaluation of where architecture attention is most needed.

Architecture has always been, at its core, the discipline of reducing uncertainty in the service of organisational objectives. Risk-driven design simply makes this purpose explicit — and uses it to ensure that architecture effort is directed where it matters most, rather than spread thinly across everything or concentrated arbitrarily on whatever the template demands.
